  Home > Storage Walk-In's >

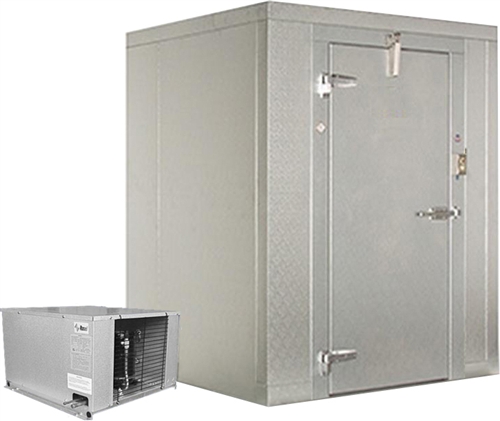

8x6 Walk-in Storage Cooler
8x6 walk-in storage cooler



Alternative Views:


Our Price: $6,827.99

Product Code: WISC-86
Qty:

Description

Complete PackageExtended 5 year Compressor Warranty
Russell RefrigerationAnti-condensate frame
Crown Tonka PanelsEnergy Efficient ECM Motors

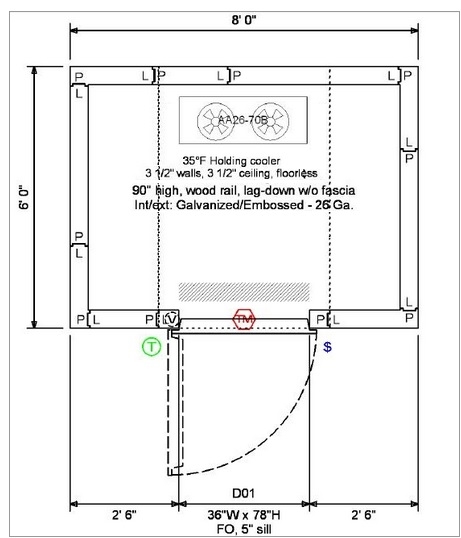

Dimensions:
External (O.D.):8' 0" x 6' 0" x 7' 6" - w x d x h
Internal (I.D.):7' 5 1/4" x 5' 5 1/4" x 7' 2 5/8" - w x d x h
Volume:292 ft³

•Finished opening 36" x 78" hinged self close overlap cooler door
•Latch- Kason 58CL Cylinder Locking - W/59 Roller Strike (Self Closing)
•Pilot Light Switch 120v w/cover(loose), for 2x4 flush handy box (stub conduit to box on interior)
•Thermometer 2 1/2" Dial with Standard Lead
•Door Closer - Kason 1094 SureClose™ Hydraulic (Concealed mounting)
•Gasket- Magnetic

Finishes
Walls:Galvanized/Embossed - 26 Ga. - interior & exterior
Ceilings:Galvanized/Embossed - 26 Ga. - interior & exterior

Panel Thickness
Walls:3.5" UL Listed Class 1 Foam
Ceilings: 3.375" UL Listed Class 1 Foam

Condensing Unit for Holding Cooler
Manufacturer:Russell
Description:Med Temp R404A Air Cooled Hermetic Remote Outdoor
Model:RLH200M44
Horsepower:0.5hp
Extras: Defrost timer included. Drier and Sight glass mounted (except for 1/2 to 2 hp med temp units).
Electrical:230/1/60, RLA 4.6, MOPD N/A, MCA 15
Conditions: BTUH: 5970 - Room Temp: 35°F - Ambient: 95°F
Warranty:Compressor-motor warranty extended to 5-years, parts only, no labor

1 x Evaporator (Unit cooler):
Manufacturer:Russell
Description:Air defrost Low profile coil
Model:AA16-58BB
Extras:With expansion valve solenoid and thermostat shipped loose ECM fan motors
Electrical:115/1/60, Fan amps 0.9, Defrost amps N/A

Accessories
•Light- 1806 (120v) Vapor-Proof Compact Fluorescent Globe fixture w/bulb (Ship Loose)
•Lag Down Walls to Ceiling - Field Installed Trim Caps
•Blocking For Strip Curtain
