  Home > Storage Walk-In's >

8x6 Walk-in Storage Freezer

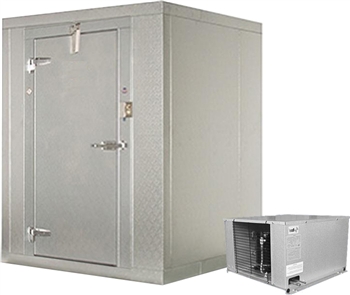

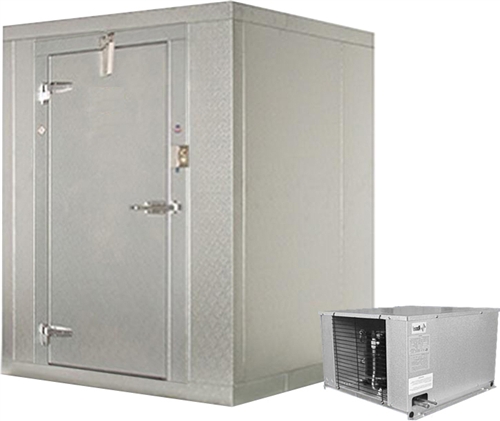

8x6 walk-in storage freezer



Alternative Views:


Our Price: $16,188.10


Product Code: WISF-86
Qty:

Description

Complete PackageExtended 5 year Compressor Warranty
Russell RefrigerationAnti-condensate frame
Crown Tonka PanelsEnergy Efficient ECM Motors

Dimensions:
External (O.D.):8' 0" x 6' 0" x 7' 6" - w x d x h
Internal (I.D.):7' 2" x 5' 2" x 6' 8" - w x d x h
Volume:247 ft³

•Finished opening 36" x 78" hinged self close overlap cooler door, 5" sill
•Latch- Kason 58CL Cylinder Locking - W/59 Roller Strike (Self Closing)
•Pilot Light Switch 120v w/cover(loose), for 2x4 flush handy box (stub conduit to box on interior)
•Thermometer 2 1/2" Dial with Standard Lead
•Heated Jamb (4 sided) w/Threshold
•Door Closer - Kason 1094 SureClose™ Hydraulic (Concealed mounting)
•Gasket- Magnetic

Finishes
Walls:Galvanized/Embossed - 26 Ga. - interior & exterior
Floors:Aluminum/Smooth -.050 - interior
Galvanized/Embossed - 26 Ga. - exterior
Ceilings:Galvanized/Embossed - 26 Ga. - interior & exterior

Panel Thickness
Walls:5" UL Listed Class 1 Foam
Floors:5" UL Listed class 1 Foam standard floor 1000 lb/ft² equally distributed (single layer of underlayment in floor)
Ceilings: 5" UL Listed Class 1 Foam

Condensing Unit for Holding Freezer
Manufacturer:Russell
Description:Low Temp R404A Air Cooled Hermetic Remote Outdoor
Model:RLH215L44
Horsepower:2hp
Extras: Defrost timer included. Drier and Sight glass mounted (except for 1/2 to 2 hp med temp units).
Electrical:230/1/60, RLA 16.7, MOPD N/A, MCA 24
Conditions: BTUH: 8870 - Room Temp: -10°F - Ambient: 95°F
Warranty:Compressor-motor warranty extended to 5-years, parts only, no labor

1 x Evaporator (Unit cooler):
Manufacturer:Russell
Description:Electric defrost Low profile coil
Model:AE26-75B
Extras:With expansion valve solenoid and thermostat shipped loose ECM fan motors
Electrical:230/1/60, Fan amps 0.9, Defrost amps 7

Accessories
•Light- 1806 (120v) Vapor-Proof Compact Fluorescent Globe fixture w/bulb (Ship Loose)
•Lag Down Walls to Ceiling - Field Installed Trim Caps
•Vent - 115v Hi-Flow Heated Pressure Relief Port (Kason 1832)
•Blocking For Strip Curtain
