  Home > Glass Door Walk-in Coolers >

14-Door Walk-in Display Cooler
14 door walk-in cooler

Our Price: $46,673.10


Product Code: GDWI-14
Qty:

Description

Complete PackageExtended 5 year Compressor Warranty
Styleline Doors (30" x 79")Anti-condensate frame
Crown Tonka PanelsEnergy Efficient ECM Motors
Russell RefrigerationLED lights Standard

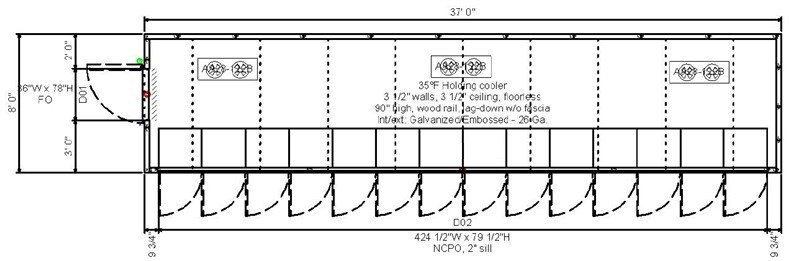

Dimensions:
External (O.D.):37' 0" x 8' 0" x 7' 6" - w x d x h
Internal (I.D.):36' 5 1/4" x 7' 5 1/4" x 7' 2 5/8" - w x d x h
Volume:1956 ft³

•MOD//LINE 3079 - NT
•Normal Temperature, Cooler (38°F cooler)
•75%RH protection (75°F ambient/38°F cooler)
•Finish: Satin Black-Smooth
•Door Hinging: to be determined
•Net Cooler Opening: 35' 4-1/4" x 79-1/4"
•Door to include: standard handle, internal hinging assembly
•Frame to include: (1) ESC Controller per frame, (15) T8 Light Assemblies
•Shelving package: (30) 90" galvanized post assemblies, (84) 30" wide x 24" deep black shelves (includes PTM)

Finishes
Walls:Galvanized/Embossed - 26 Ga. - interior & exterior
Ceilings:Galvanized/Embossed - 26 Ga. - interior & exterior

Panel Thickness
Walls:3.5" UL Listed Class 1 Foam
Ceilings: 3.375" UL Listed Class 1 Foam

Condensing Unit for Holding Cooler
Manufacturer:Russell
Description:Med Temp R404A Air Cooled Hermetic Remote Outdoor
Model:RLH200M44
Horsepower:4hp
Extras: Defrost timer included. Drier and Sight glass mounted (except for 1/2 to 2 hp med temp units).
Electrical:230/3/60, RLA 21.5, MOPD N/A, MCA 31
Conditions:BTUH: 37480 - Room Temp: 35°F - Ambient: 95°F
Warranty:Compressor-motor warranty extended to 5-years, parts only, no labor

3 x Evaporator (Unit cooler):
Manufacturer:Russell
Description:Air defrost Low profile coil
Model:AA28-122B
Extras:With expansion valve solenoid and thermostat shipped loose ECM fan motors
Electrical:115/1/60, Fan amps 1.8, Defrost amps N/A

Accessories
•Lights- LED
•Ceiling Hanger Brackets (no rods) - wood frame
•Lag Down Walls to Ceiling - Field Installed Trim Caps
•Header Brace Brackets - Standard
•Blocking For Strip Curtain
